The electric tricycle scheme adopts vector control and related depth extension control for BLDCM or PMSM.It has the advantages of high comfort, high efficiency, small volume and high reliability.

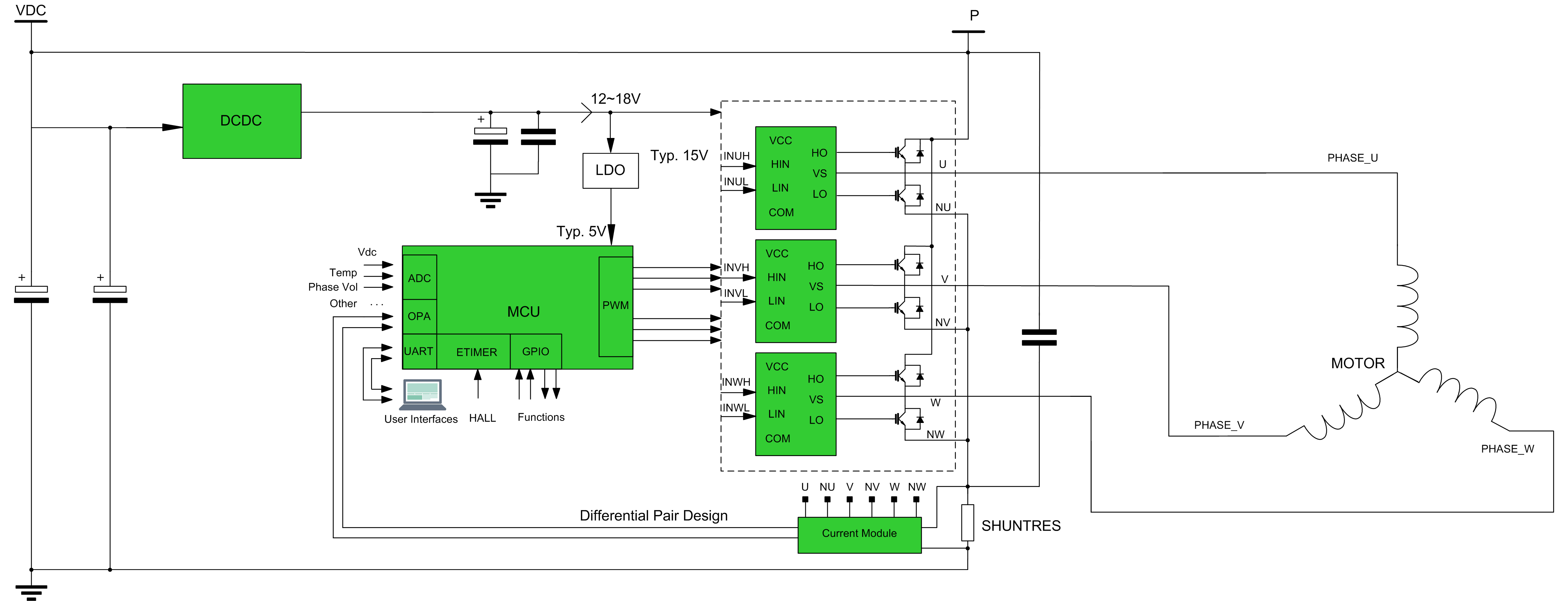

The main hardware topology diagram of the electric tricycle scheme is as follows:
| Topological classification | product category | Typical product model | Typical package | product description |
|---|---|---|---|---|
| Gate Driver IC | Gate Driver IC | SDH21263 | SOP-8-225-1.27 | 225V HIGH VOLTAGE HALF BRIDGE DRIVER |
| DC-DC Converter | DC-DC Converter | SD4938 | SOP-8-225-1.27 | 150V CURRENT MODE PWM CONTROLLER |
| title | Types of | Size (KB) | date | Download the latest Chinese version |
|---|---|---|---|---|
| SilanPro_Precautions for Use | 658 | 2020-04-02 | SilanPro_Precautions for Use | |
| SilanPro_ User Manual _1.3 | 3072 | 2020-04-02 | SilanPro_ User Manual _1.3 |
